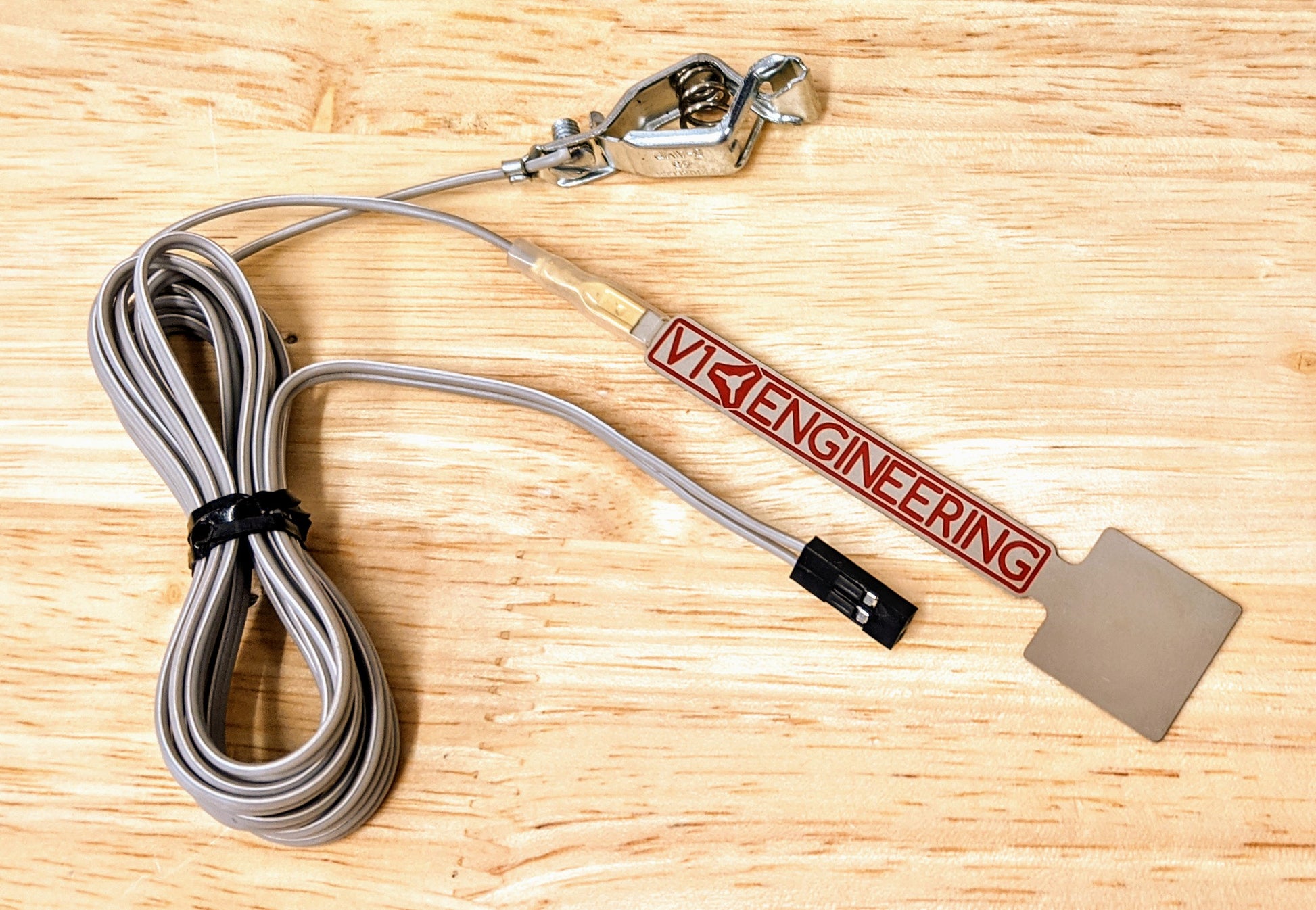

Tiny Touch Plate V1.

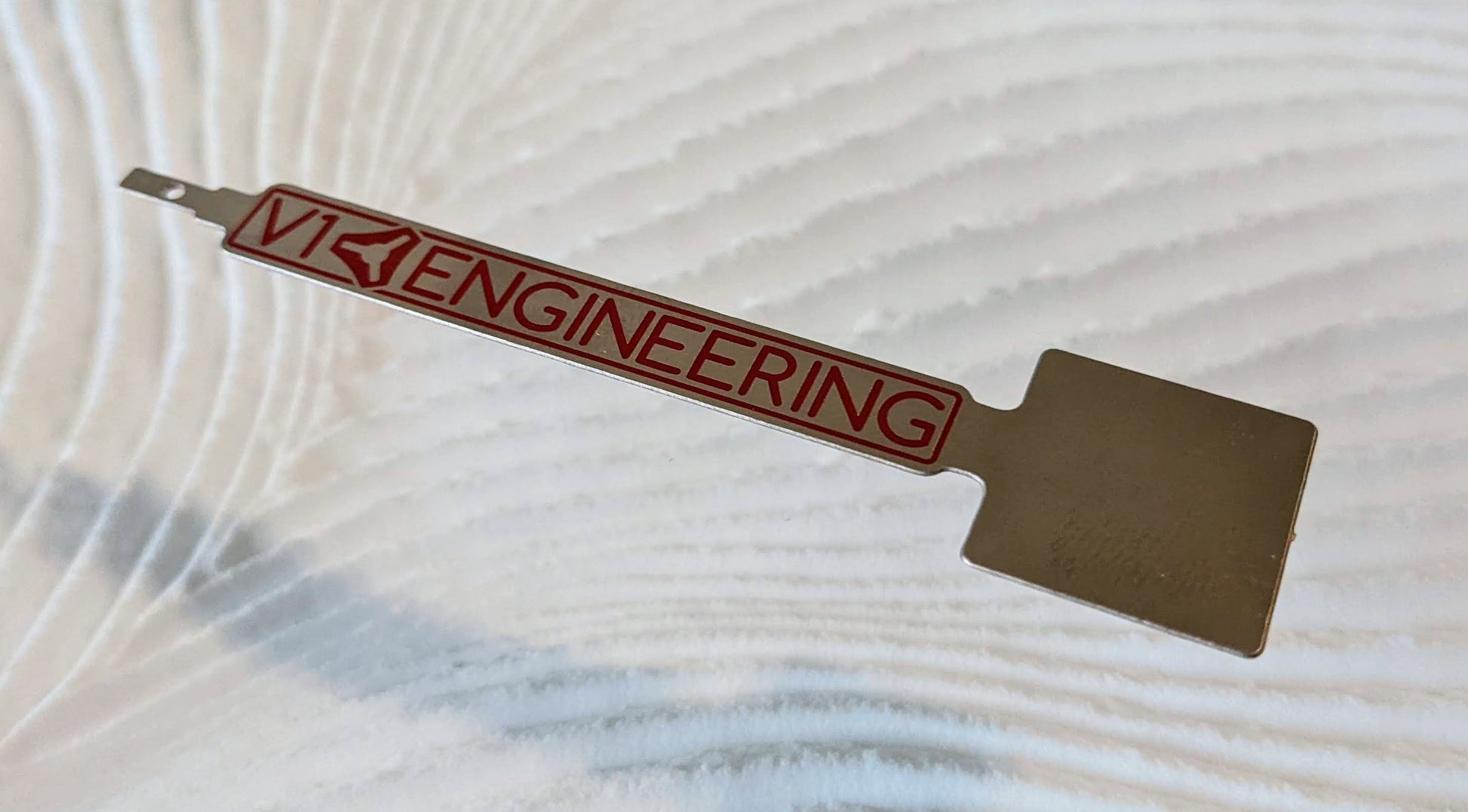

The Touch Plate is 0.5mm thick stainless steel. It has nice flex to it but it can be bent if you would prefer a little angle to it.

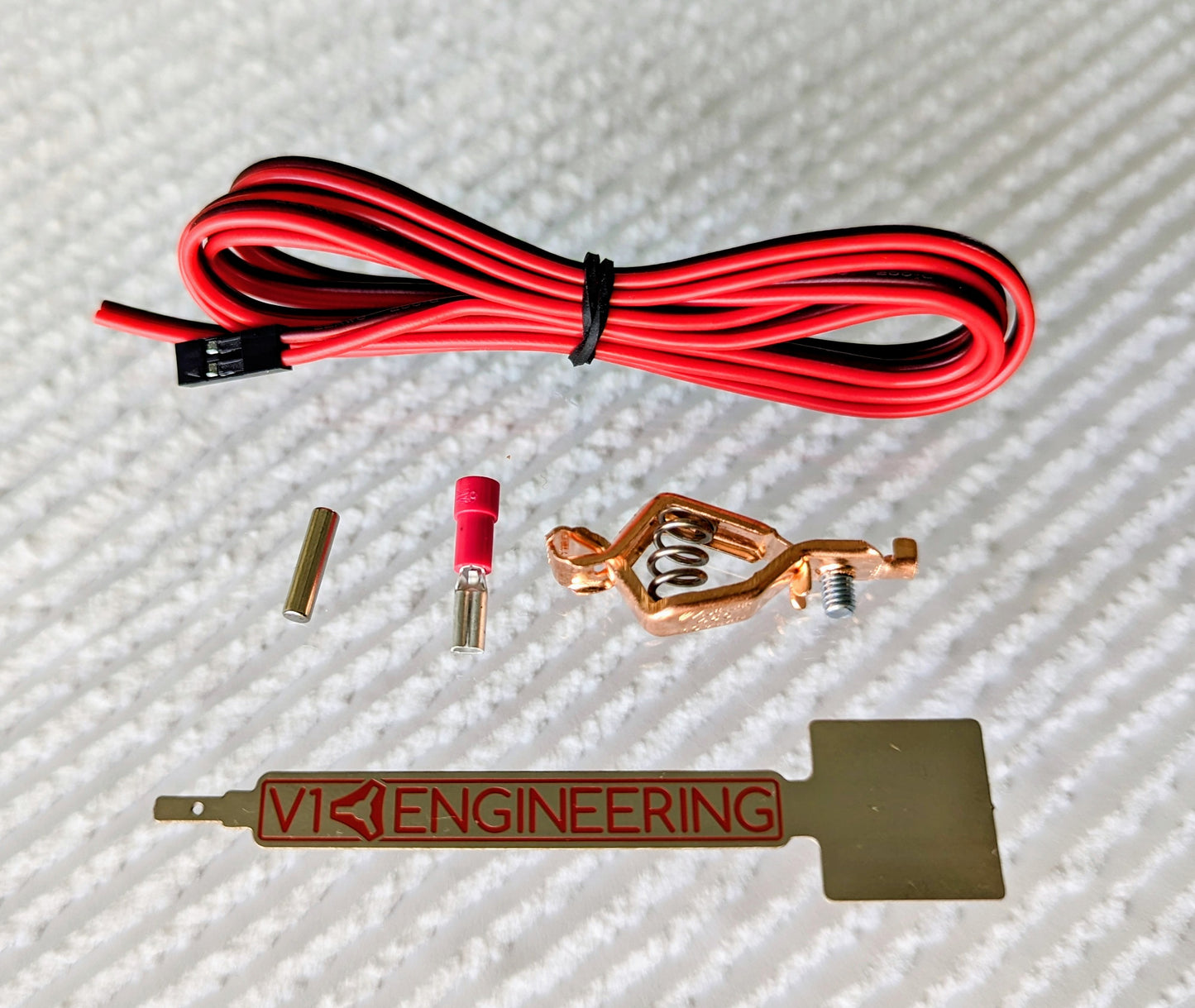

The Kit Comes with;
1- Stainless Steel 0.5mm thick touch plate
1- Wire, 1.5M (60"), 22AWG with a female dupont plug on one end already. Premium Silicone
1- Copper,Alligator clamp, easily handle 1/8" to 1/4" endmills
1- Molex brand Spade connector.
1-1/8 in x 1/2 in (3.15mmx12.6mm) Neodymium Cylinder N42 (ND004) Magnet
This is a DIY bag of parts because I know you all like to personalize things. Cut and crimp the wire to a length suitable for your build.
The Refill Comes with;
1- Stainless Steel 0.5mm thick touch plate
Use:

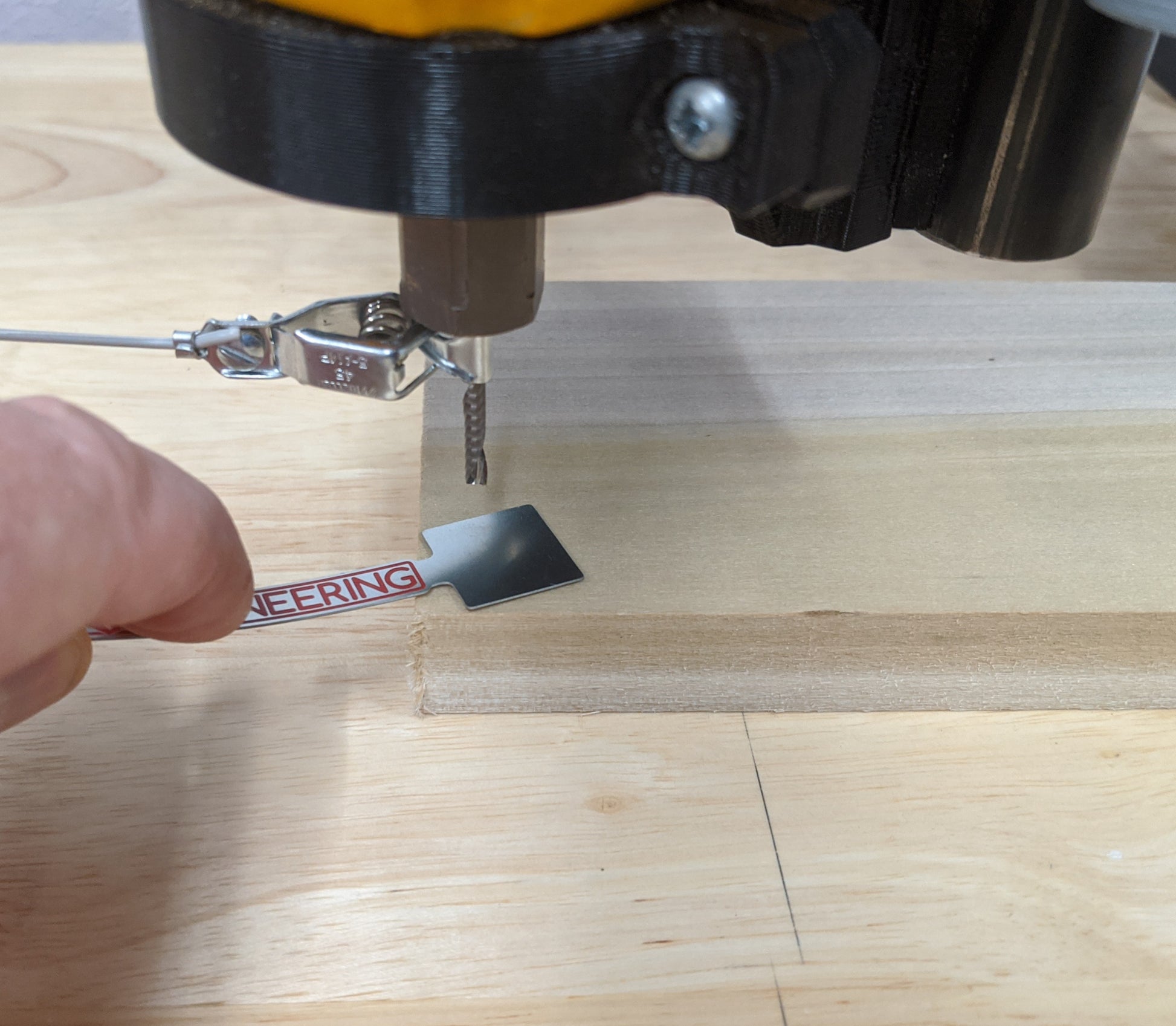

The alligator clip should be connected to the Zmin negative, and the plate to the S (signal) pin. All V1 Firmware is and has been ready to use this type of plate.
Further details and machine specific Gcode can be found on the Milling Basics page.
Make your own
Darwin knocked it out of the park with this video showing a few ways to make and use a touch plate.
Update starting with order #24695, Premium Silicone wires, larger magnet, copper clamp, premium molex spade.
