LowRider v4 Hardware kit
LowRider v4 Hardware kit
Couldn't load pickup availability
Hardware bundle for the LR4, all sizes.

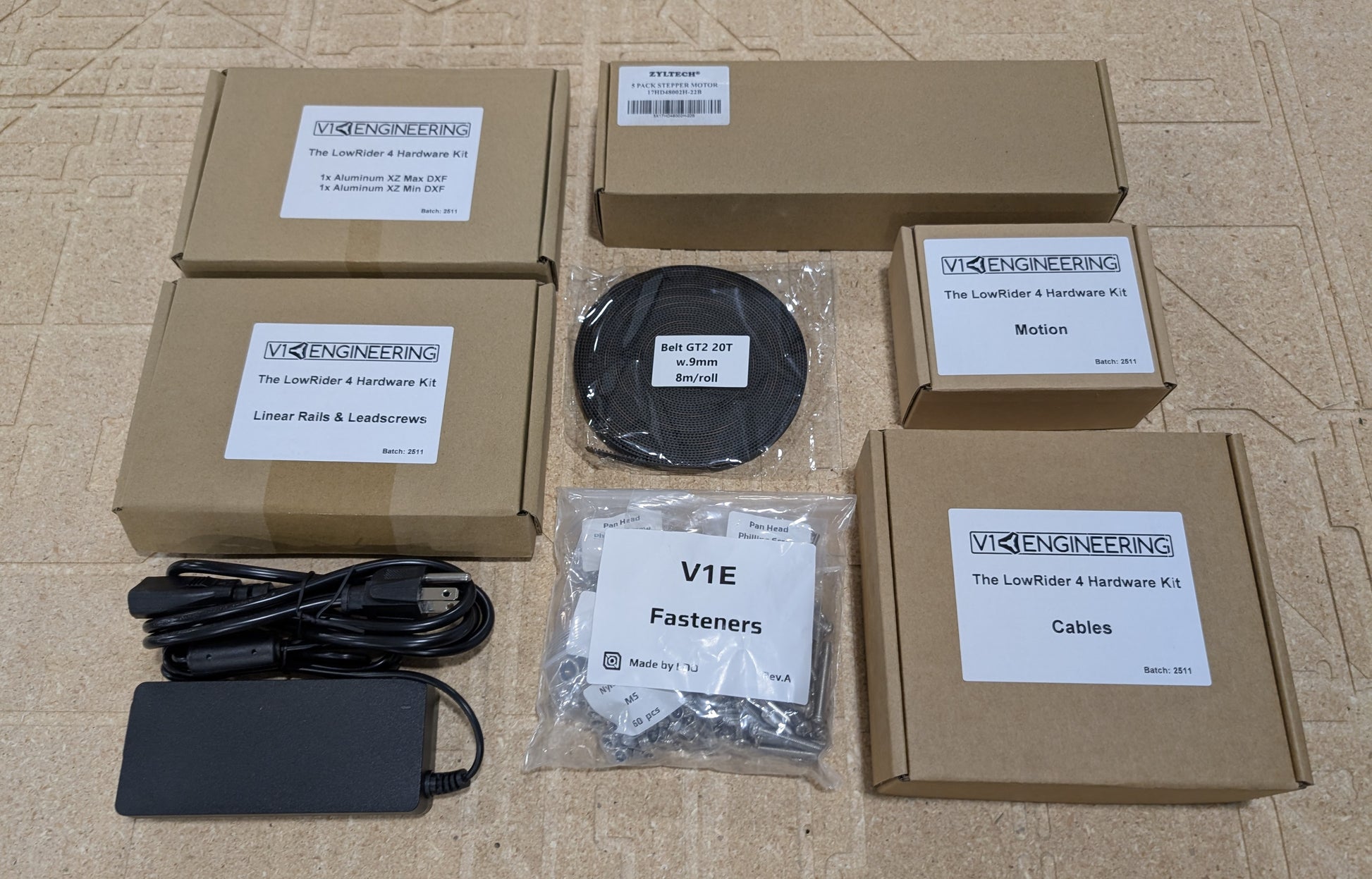

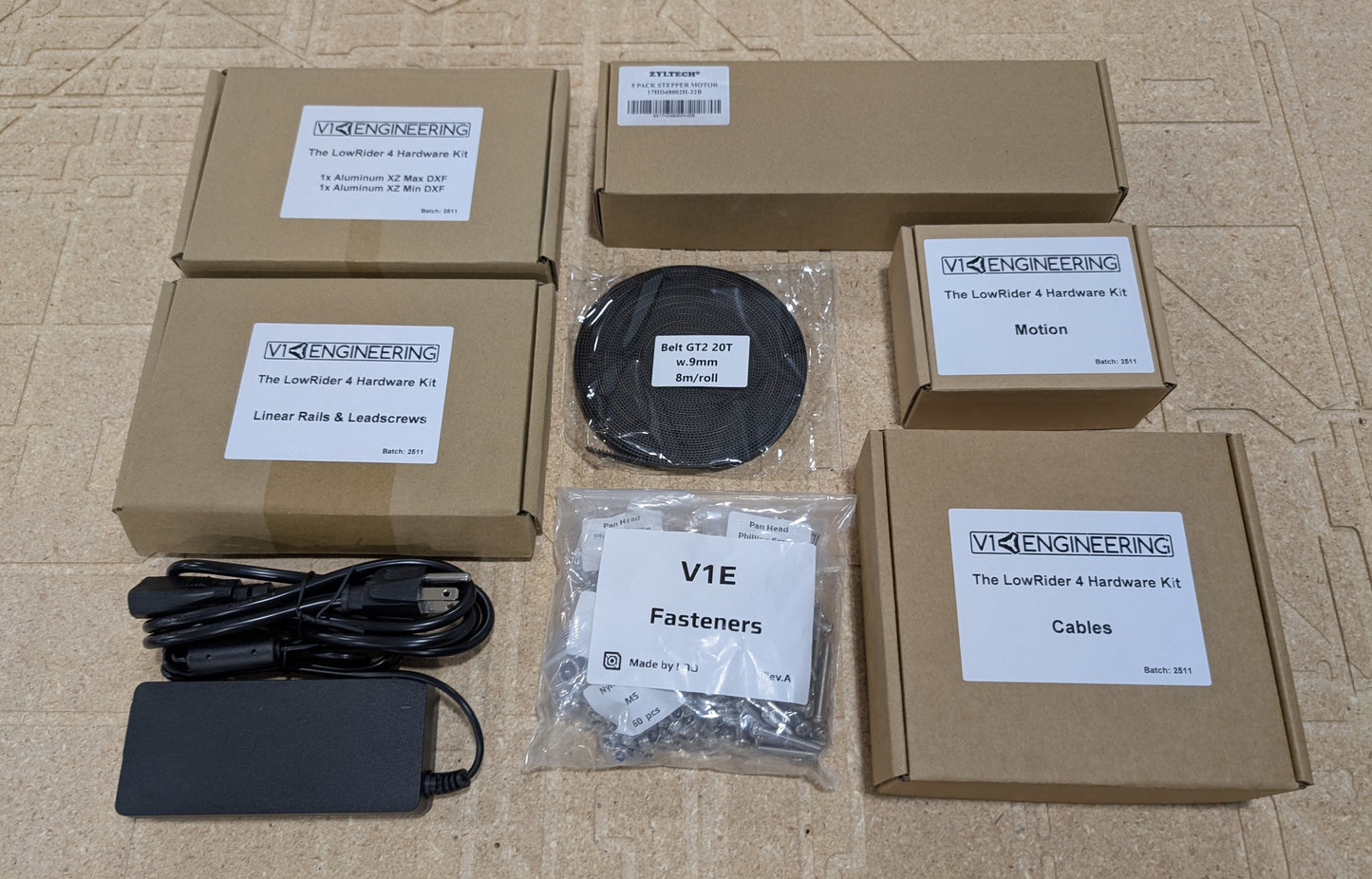

Includes
| Part | QTY |

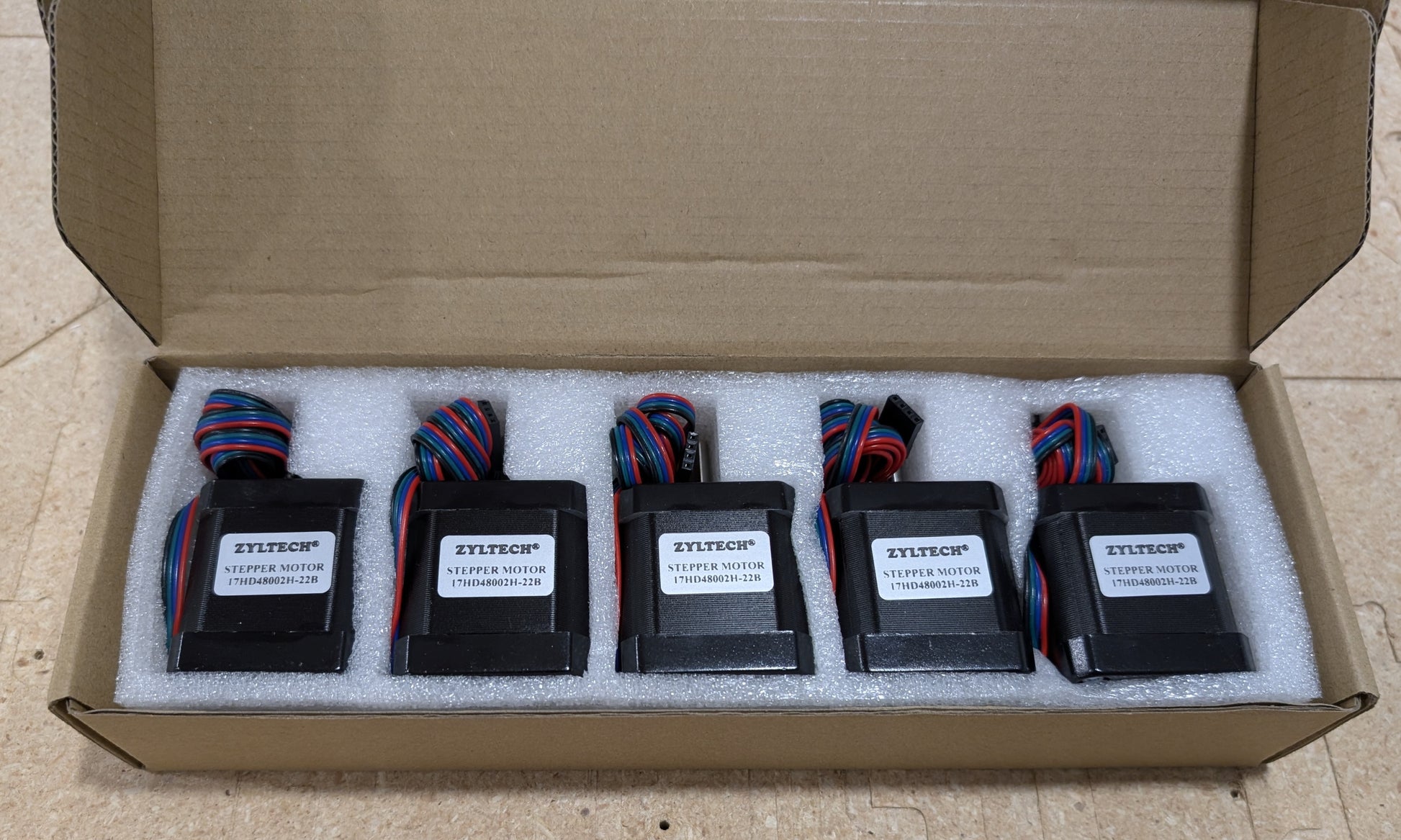

| Stepper Motors -Nema 17 84oz/in |
5 |
| Belt GT2 10mm |
8M |
| Pulleys 16t gt2 10mm | 3 |
| Idlers 20t gt2 10mm | 6 |
| Power Supply 24V |
1 |
| Wiring kit | 3 |

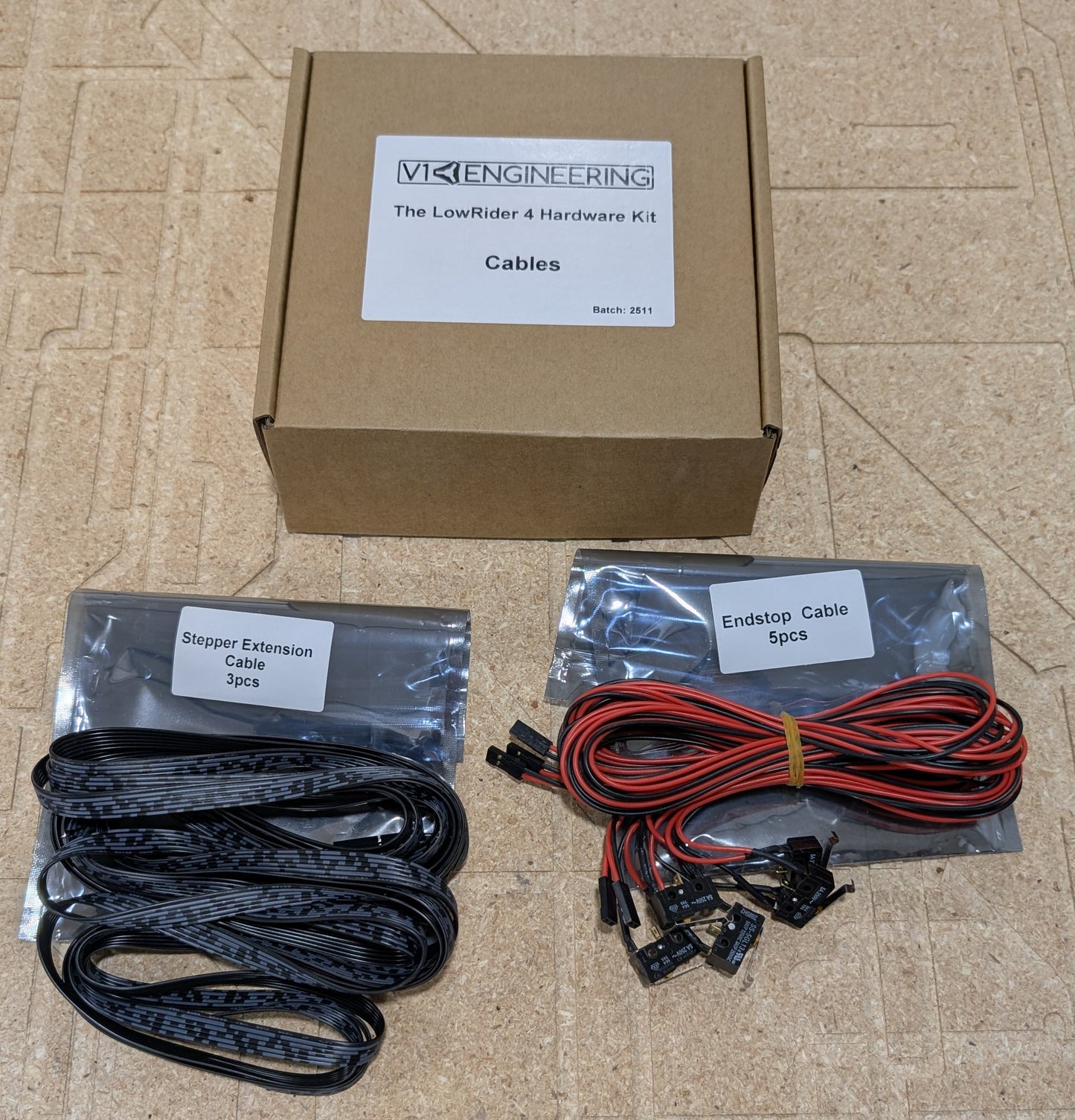

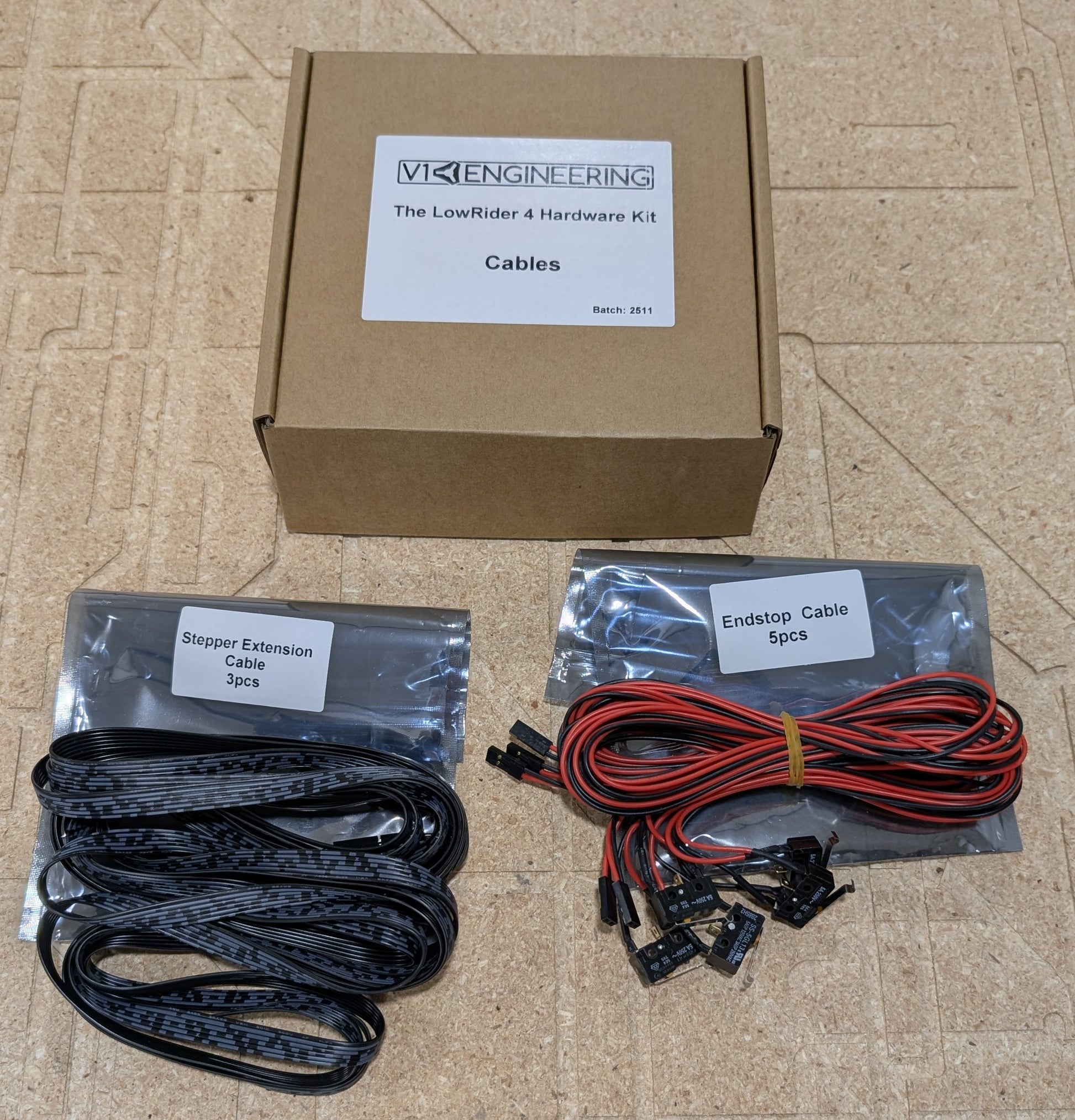

| Endstop kit, 5 omron's & wires, crimps | 1 |
| Bearings 6082rs |
14 |
| leadscrew 145mm /nut | 2 |
| Coupler 5mm to 8mm |
2 |

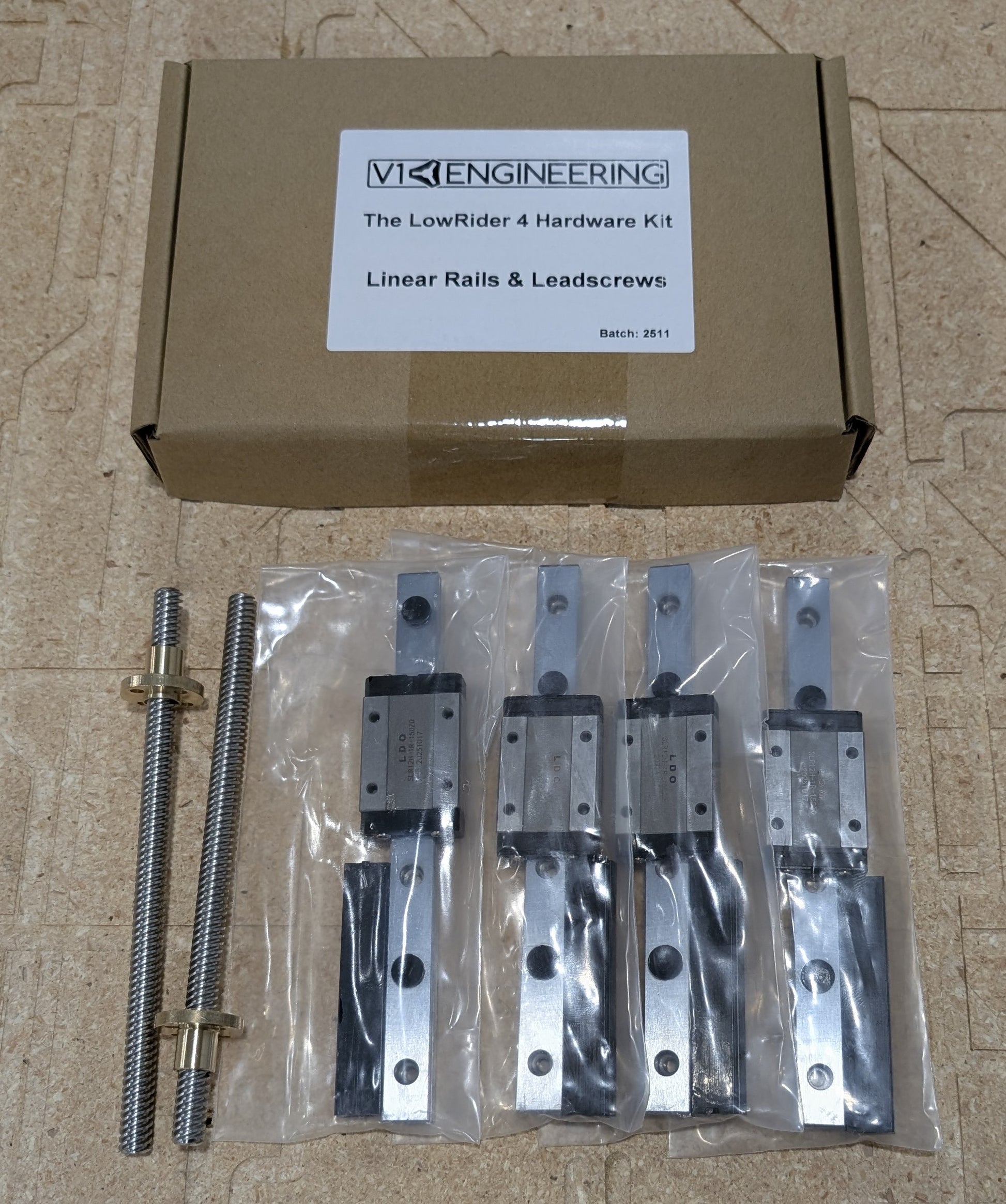

| MGN12H Linear Rails 150mm | 4 |
| Lube | 1 |

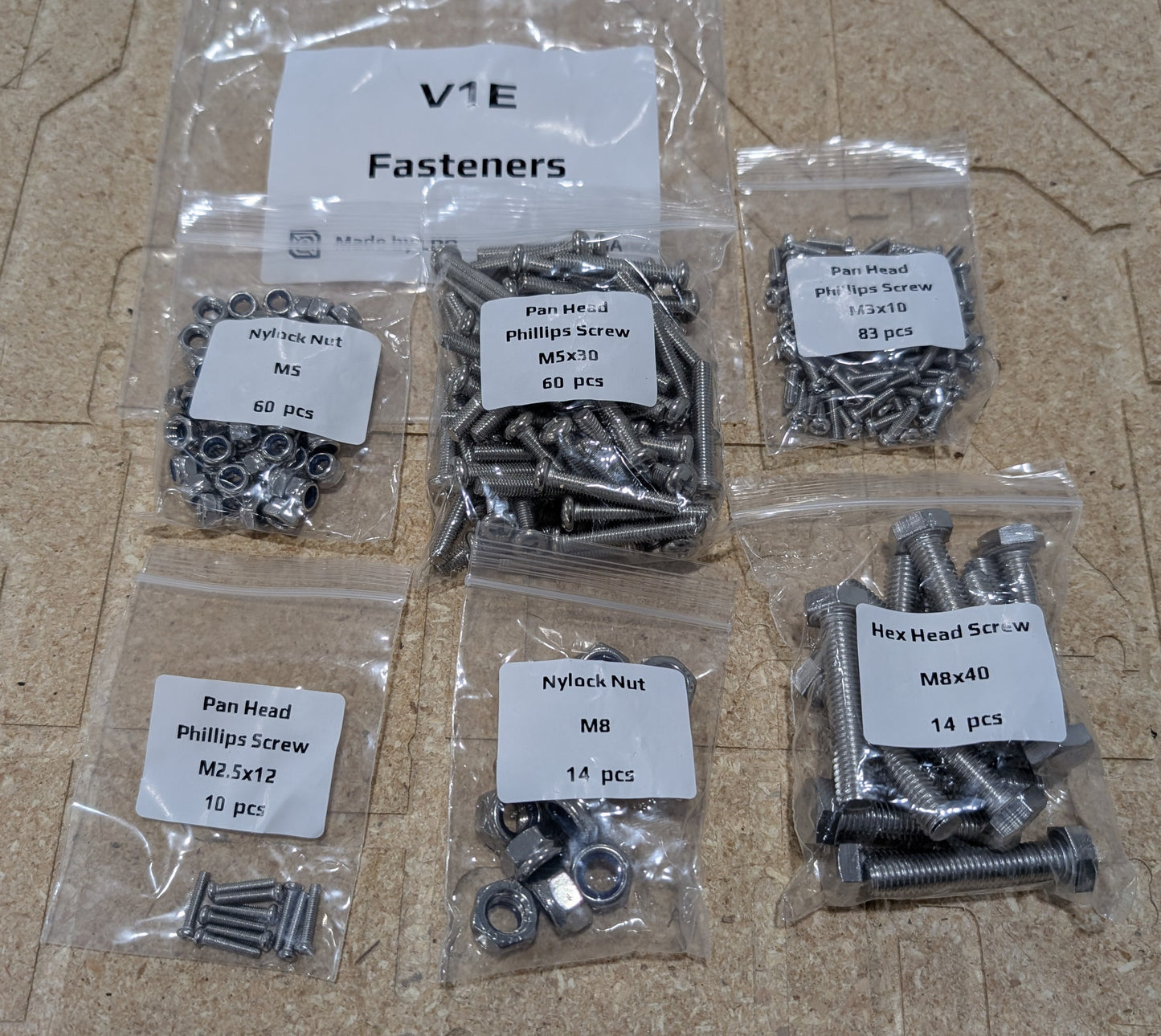

| Hardware | QTY |
| 5/16x1.5 | 14 |
| 5/16 locknut | 14 |
| M5 x 30 | 60 |
| M5 locknut | 60 |
| M3x10 | 83 |
| M2.5x12 | 10 |
Still needed -
1- Option above - Your own Control Board, Jackpot CNC Controller recommended
2- Option above - Printed Parts
3- Option above- XZ Plates
4- Buy locally - EMT Conduit or other suitable X and Y rails.
5- Buy, make, or reuse -a table to use it on,
6- Buy locally - a router or other tool, Makita 700 series is excellent
7- On hand or buy locally- and some cable ties (working on getting some), or other methods of securing wires.
8- Buy Locally - You will also need some 1/4" (6.35mm) or less wood or other material for the Strut plates,
9- Option above- and possibly an endmill to cut them with, make sure it fits you router.
10 - If you plan on doing tool changes, a TouchPlate really helps. Some people use these a lot of others don't need them. If you want more details, ask us in the forums.
More info on all the parts in the instructions.

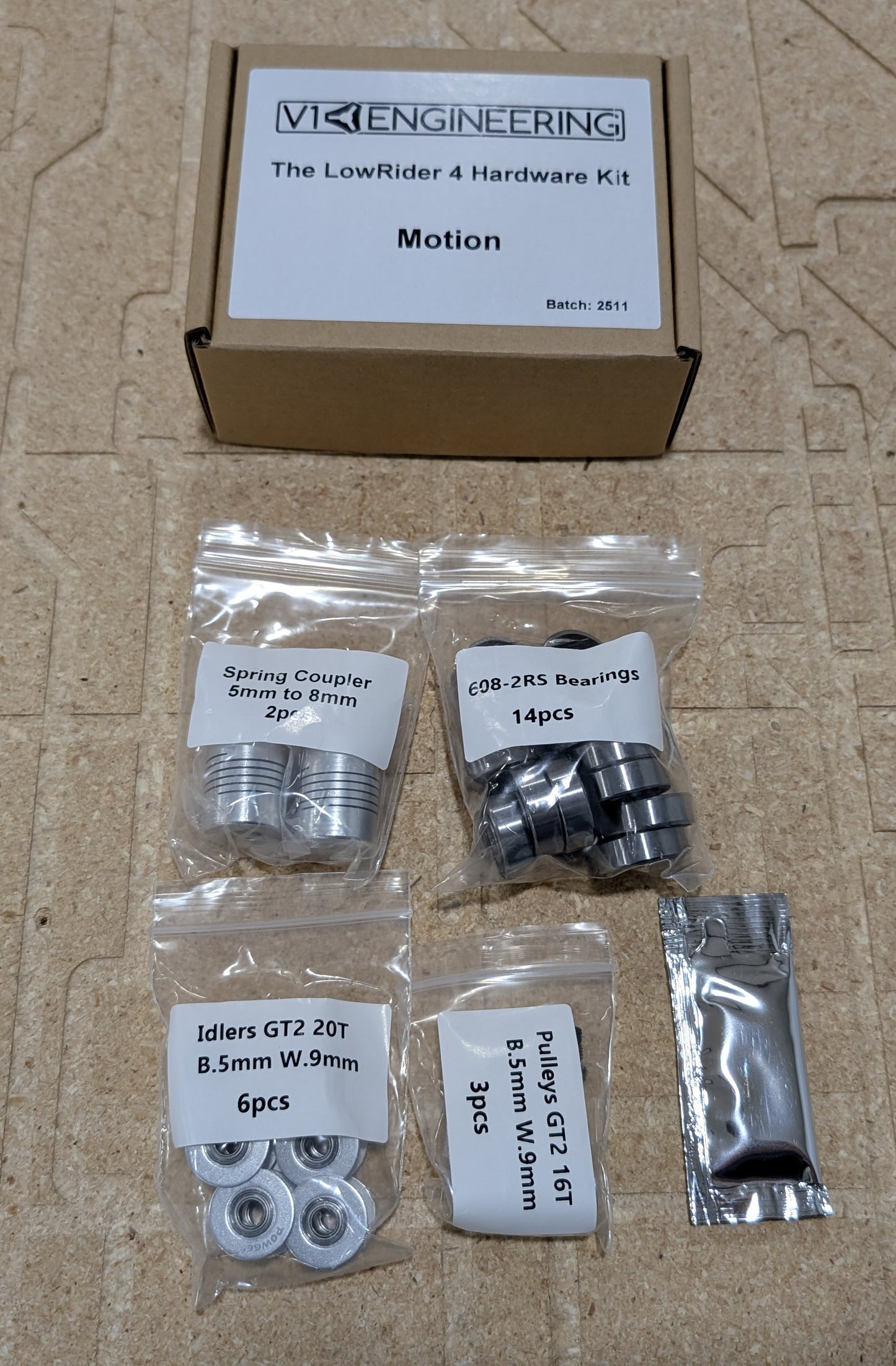

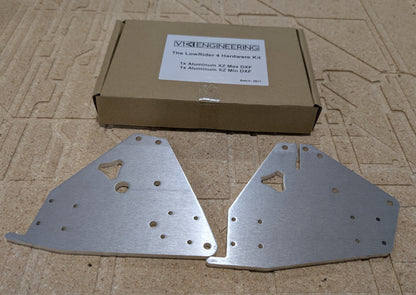

*Pictures are just for reference, and includes optional items.
International Direct
- Bypass any Tariff issues and get an LR4 Kit China Direct including XZ plates, here. If you want a Jackpot board, you can get the international direct version of that, here.
- Authorized sets of LowRider V4 printed parts are available from Philipp These ship from Germany Direct.
Rather Buy than build?
https://northwoodscustomcreations.com/ is offering to build and ship fully built LowRider V4's!
